01
— Product / 01
Precision Adjuster
353025mm
- A (mm)
- —
- B (mm)
- —
- C (mm)
- —
- D (mm)
- —
- E (mm)
- —
- Breaking Load (kg)
- —
- Weight (g)
- —
352040mm
- A (mm)
- 41
- B (mm)
- 6
- C (mm)
- 10.2
- D (mm)
- 55
- E (mm)
- 62
- Breaking Load (kg)
- 750
- Weight (g)
- 78
351045mm
- A (mm)
- 46
- B (mm)
- 6
- C (mm)
- 10.2
- D (mm)
- 55
- E (mm)
- 67
- Breaking Load (kg)
- 750
- Weight (g)
- 83
350050mm
- A (mm)
- 51
- B (mm)
- 6
- C (mm)
- 10.2
- D (mm)
- 55
- E (mm)
- 72
- Breaking Load (kg)
- 750
- Weight (g)
- 89
| Part No. | Webbing | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | BL (kg) | Weight (g) |
|---|---|---|---|---|---|---|---|---|
| 3530 | 25mm | — | — | — | — | — | — | — |
| 3520 | 40mm | 41 | 6 | 10.2 | 55 | 62 | 750 | 78 |
| 3510 | 45mm | 46 | 6 | 10.2 | 55 | 67 | 750 | 83 |
| 3500 | 50mm | 51 | 6 | 10.2 | 55 | 72 | 750 | 89 |
Key — A = Internal Width · B = Internal Height · C = Thickness · D = External Height · E = External Width
02
— Product / 02

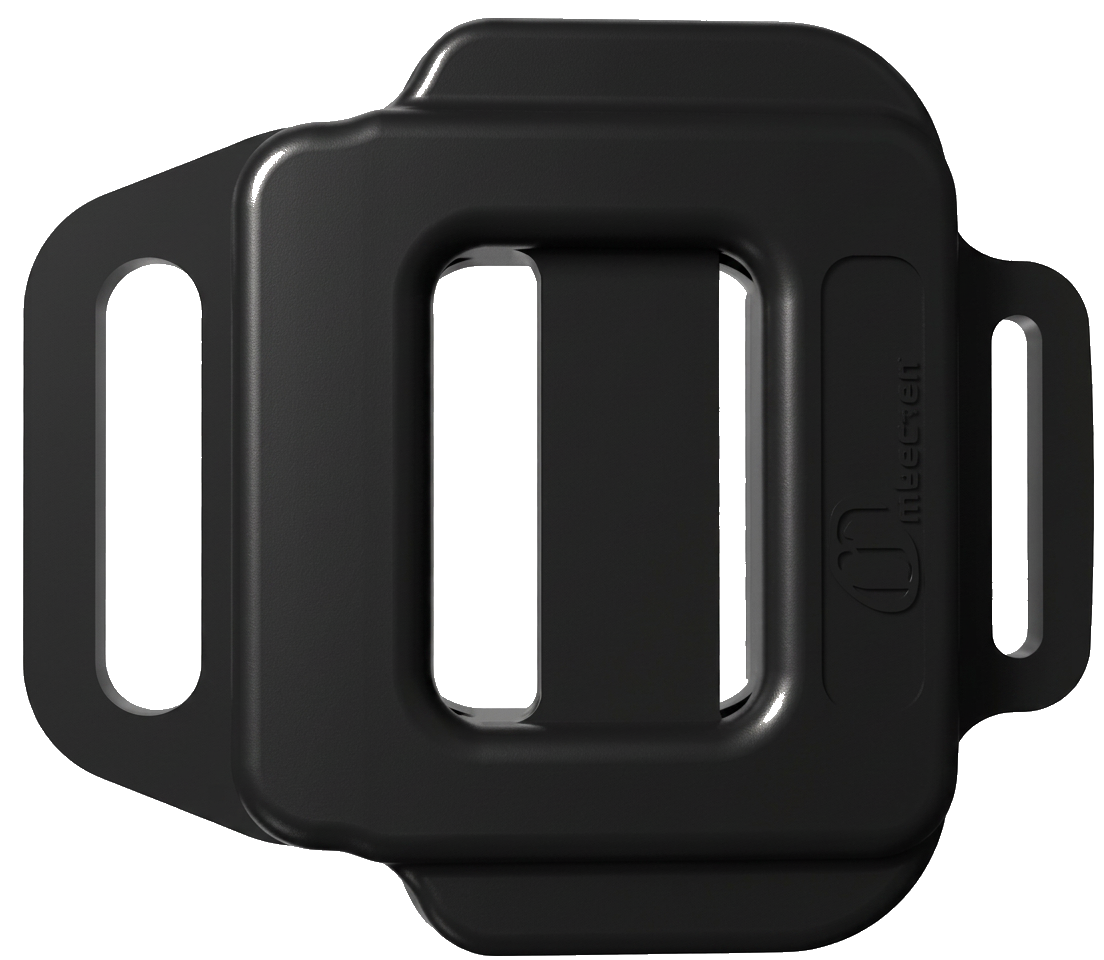

Precision Adjuster with Tab
353525mm
352540mm
351545mm
350550mm
| Part No. | Webbing |
|---|---|
| 3535 | 25mm |
| 3525 | 40mm |
| 3515 | 45mm |
| 3505 | 50mm |
03
— Enquire About This Range
Specify your programme
Custom finishes, OEM volumes and certifications available on request. Our team supports prototyping through to series production.
— Explore
Other Ranges
— Notice
Breaking loads apply to 316 Stainless Steel variants only. All loads are guidance values for straight-pull testing and do not form part of any warranty. Safe Working Load is recommended at one-fifth of the Breaking Load. All dimensions are nominal.
