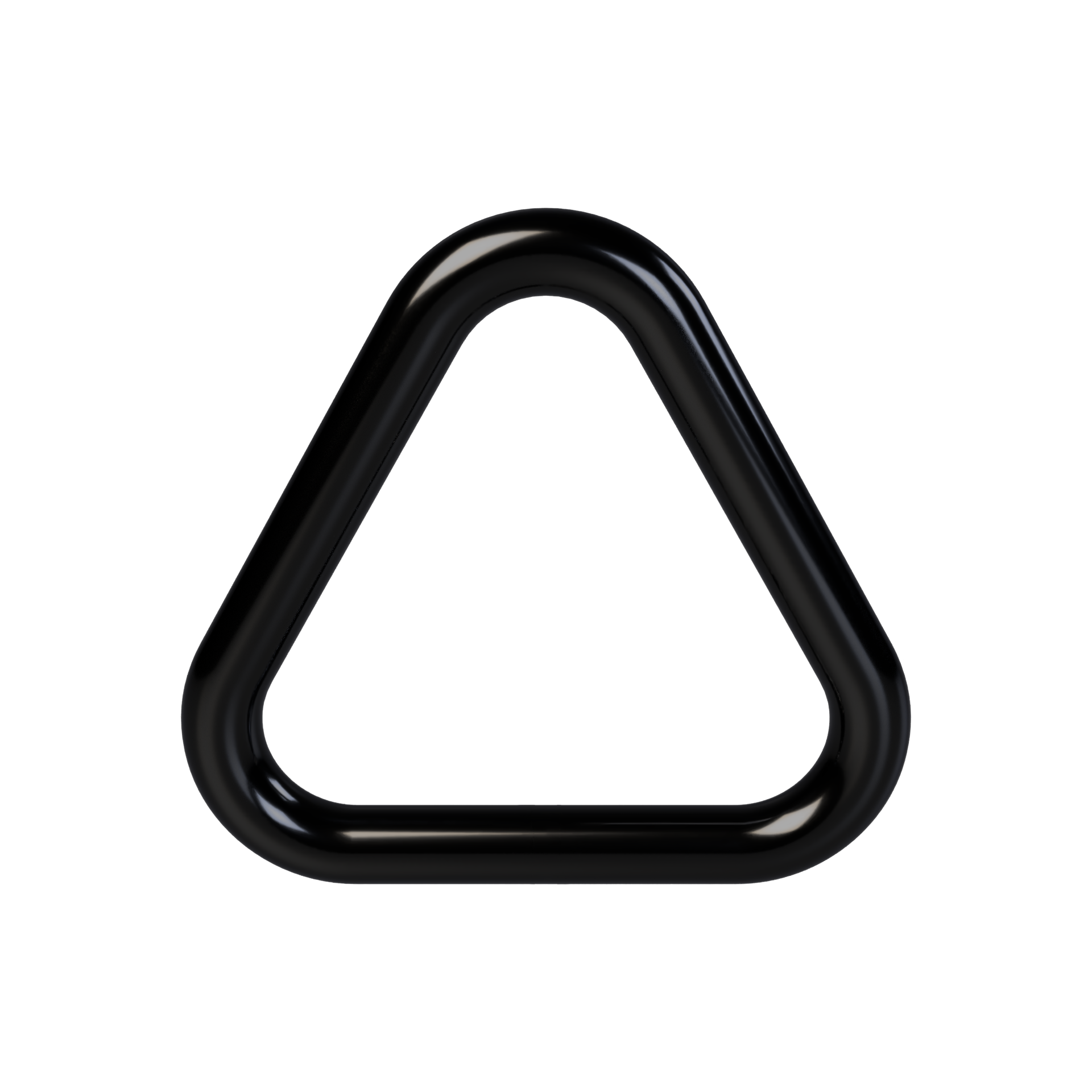

Triangle
Aluminium versions available- A (mm)
- 27
- B (mm)
- 24.7
- C (mm)
- 5
- D (mm)
- 34.7
- E (mm)
- 37
- Breaking Load (kg)
- 1750
- Weight (g)
- 19
- A (mm)
- 42
- B (mm)
- 37.7
- C (mm)
- 5
- D (mm)
- 47.7
- E (mm)
- 52
- Breaking Load (kg)
- 1750
- Weight (g)
- 27
- A (mm)
- 47
- B (mm)
- 30
- C (mm)
- 6
- D (mm)
- 42
- E (mm)
- 59
- Breaking Load (kg)
- 2750
- Weight (g)
- 36
- A (mm)
- 50
- B (mm)
- 44.5
- C (mm)
- 6
- D (mm)
- 57.1
- E (mm)
- 62.6
- Breaking Load (kg)
- 2750
- Weight (g)
- 43
| Part No. | Webbing | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | BL (kg) | Weight (g) |
|---|---|---|---|---|---|---|---|---|
| 0245 | 25mm | 27 | 24.7 | 5 | 34.7 | 37 | 1750 | 19 |
| 0247 | 40mm | 42 | 37.7 | 5 | 47.7 | 52 | 1750 | 27 |
| 0222 | 45mm | 47 | 30 | 6 | 42 | 59 | 2750 | 36 |
| 0141 | 50mm | 50 | 44.5 | 6 | 57.1 | 62.6 | 2750 | 43 |
Key — A = Internal Width · B = Internal Height · C = Thickness · D = External Height · E = External Width
D Ring
Aluminium versions available- A (mm)
- 51
- B (mm)
- 44
- C (mm)
- 7
- D (mm)
- 58
- E (mm)
- 65
- Breaking Load (kg)
- 3750
- Weight (g)
- 56
| Part No. | Webbing | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | BL (kg) | Weight (g) |
|---|---|---|---|---|---|---|---|---|
| 6127L | 50mm | 51 | 44 | 7 | 58 | 65 | 3750 | 56 |
Key — A = Internal Width · B = Internal Height · C = Thickness · D = External Height · E = External Width

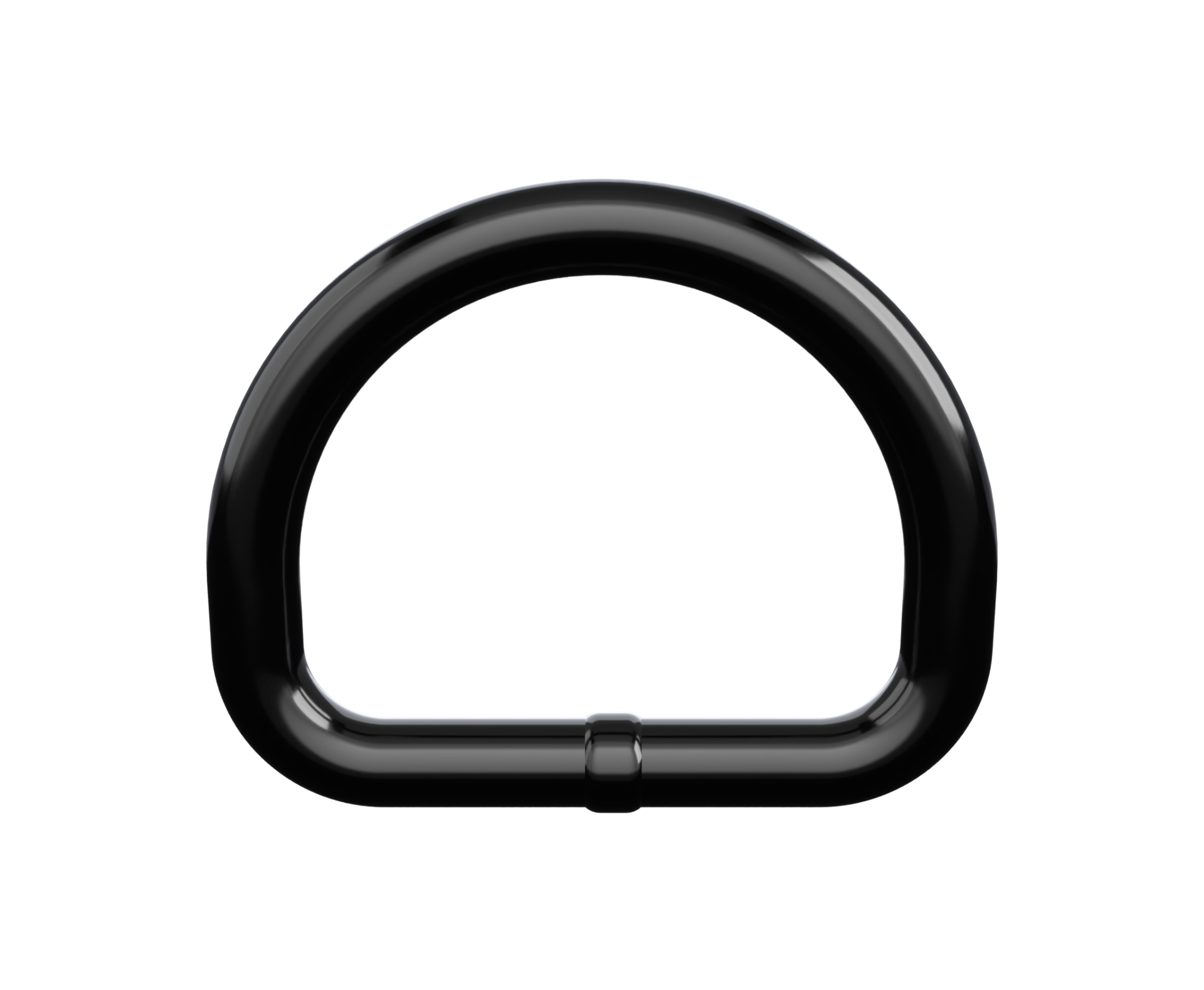

Long D Ring
Aluminium versions available- A (mm)
- 53
- B (mm)
- 40
- C (mm)
- 8
- D (mm)
- 56
- E (mm)
- 75
- Breaking Load (kg)
- 4750
- Weight (g)
- 83
- A (mm)
- 51
- B (mm)
- 37
- C (mm)
- 7
- D (mm)
- 51
- E (mm)
- 65
- Breaking Load (kg)
- 3750
- Weight (g)
- 54
| Part No. | Webbing | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | BL (kg) | Weight (g) |
|---|---|---|---|---|---|---|---|---|
| 0128B | 50mm | 53 | 40 | 8 | 56 | 75 | 4750 | 83 |
| 6127B | 50mm | 51 | 37 | 7 | 51 | 65 | 3750 | 54 |
Key — A = Internal Width · B = Internal Height · C = Thickness · D = External Height · E = External Width

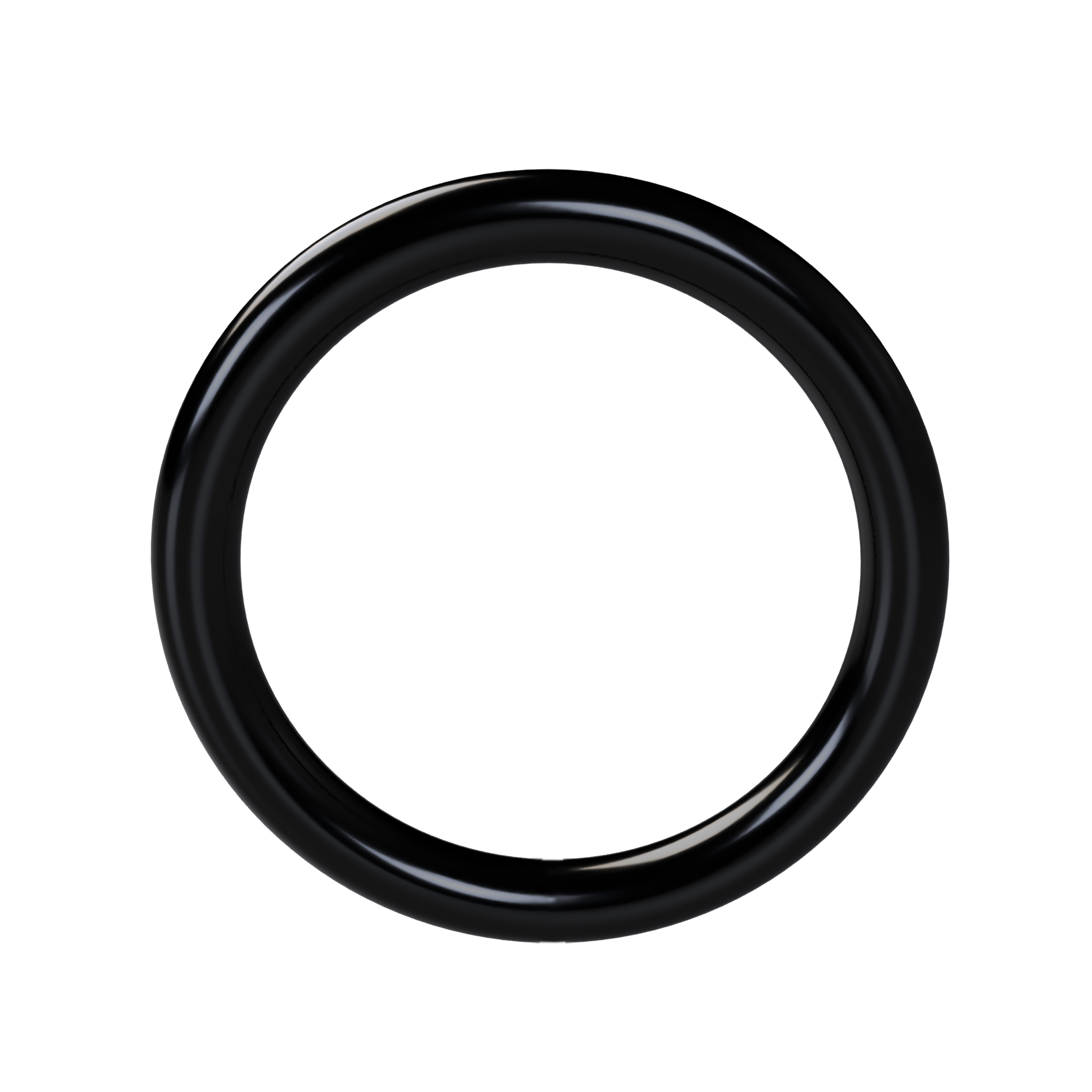

O Ring
- A (mm)
- 25
- B (mm)
- 25
- C (mm)
- 4
- Breaking Load (kg)
- 2750
- Weight (g)
- 9
- A (mm)
- 40
- B (mm)
- 40
- C (mm)
- 5
- Breaking Load (kg)
- 1750
- Weight (g)
- 18
- A (mm)
- 50
- B (mm)
- 50
- C (mm)
- 6,4
- Breaking Load (kg)
- 2750
- Weight (g)
- 44
| Part No. | Webbing | A (mm) | B (mm) | C (mm) | BL (kg) | Weight (g) |
|---|---|---|---|---|---|---|
| 0635 | 25mm | 25 | 25 | 4 | 2750 | 9 |
| 6151 | 40mm | 40 | 40 | 5 | 1750 | 18 |
| 0120 | 50mm | 50 | 50 | 6,4 | 2750 | 44 |
Key — A = Internal Width · B = Internal Height · C = Thickness · D = External Height · E = External Width

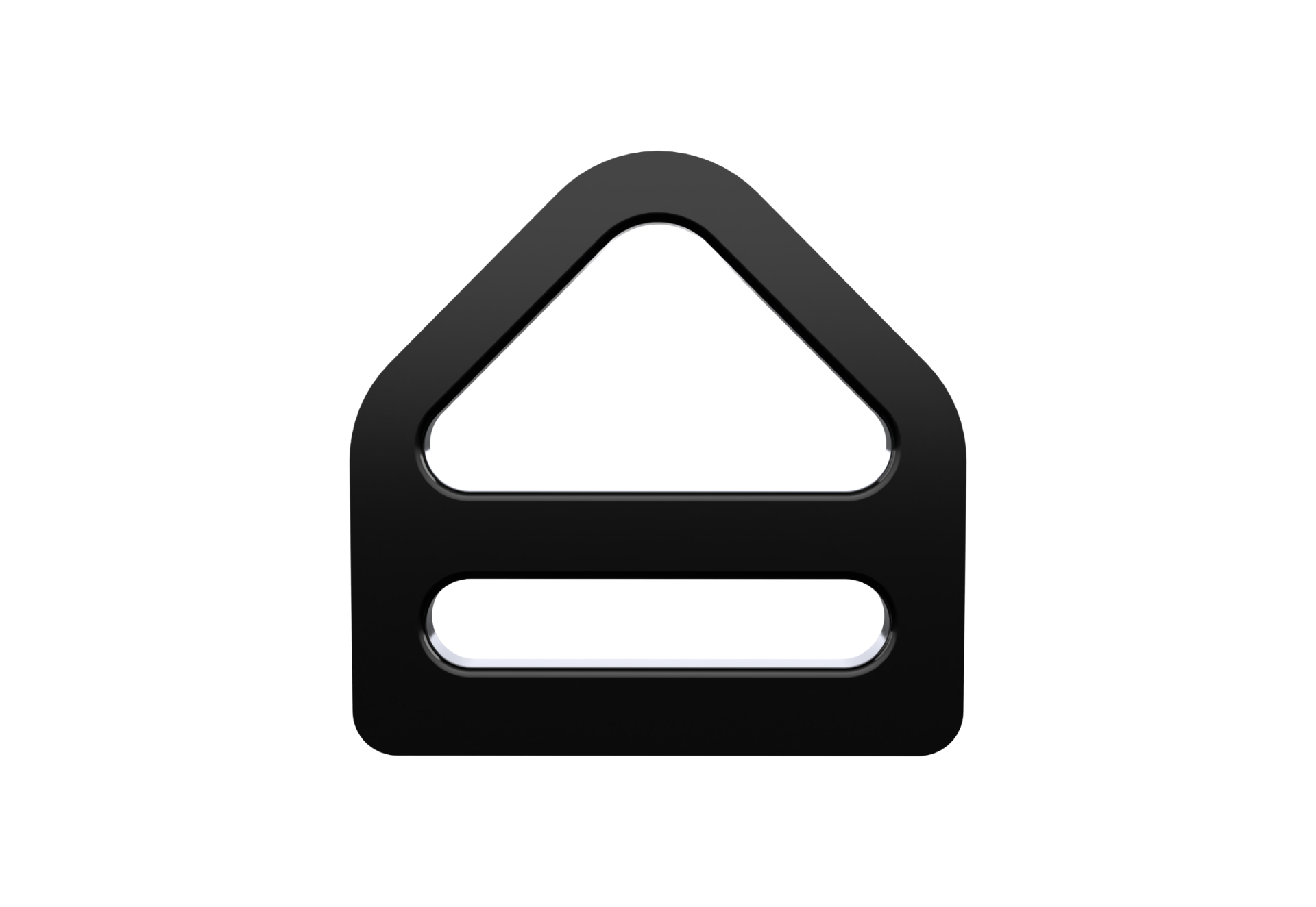

Delta Triangle Heavy
- A (mm)
- 47
- B (mm)
- 9
- C (mm)
- 5
- D (mm)
- 61
- E (mm)
- 62
- Breaking Load (kg)
- 2400
- Weight (g)
- 68
- A (mm)
- 47
- B (mm)
- 9
- C (mm)
- 6
- D (mm)
- 61
- E (mm)
- 62
- Breaking Load (kg)
- 4000
- Weight (g)
- 83
| Part No. | Webbing | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | BL (kg) | Weight (g) |
|---|---|---|---|---|---|---|---|---|
| 0585 | 45mm | 47 | 9 | 5 | 61 | 62 | 2400 | 68 |
| 0587 | 45mm | 47 | 9 | 6 | 61 | 62 | 4000 | 83 |
Key — A = Internal Width · B = Internal Height · C = Thickness · D = External Height · E = External Width

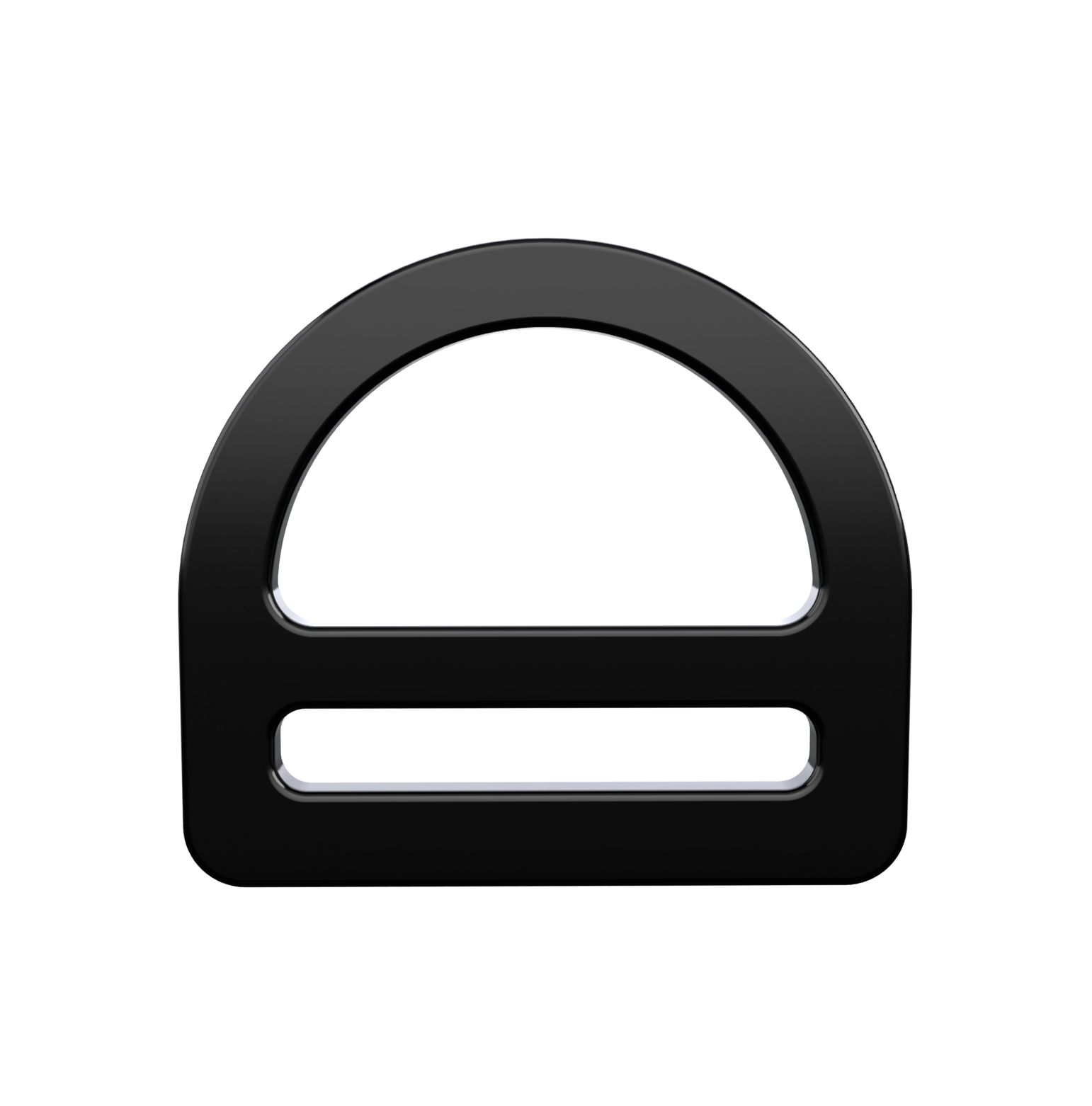

Delta D Heavy
- A (mm)
- 52
- B (mm)
- 8
- C (mm)
- 5
- D (mm)
- 62
- E (mm)
- 70
- Breaking Load (kg)
- 2400
- Weight (g)
- 77
- A (mm)
- 52
- B (mm)
- 8
- C (mm)
- 6
- D (mm)
- 62
- E (mm)
- 69.7
- Breaking Load (kg)
- 4500
- Weight (g)
- 101
| Part No. | Webbing | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | BL (kg) | Weight (g) |
|---|---|---|---|---|---|---|---|---|
| 0586 | 50mm | 52 | 8 | 5 | 62 | 70 | 2400 | 77 |
| 0588 | 50mm | 52 | 8 | 6 | 62 | 69.7 | 4500 | 101 |
Key — A = Internal Width · B = Internal Height · C = Thickness · D = External Height · E = External Width
Email me the Rings, Dees & Triangles datasheet pack
Full PDF specs delivered to your inbox in under a minute.
Specify your programme
Custom finishes, OEM volumes and certifications available on request. Our team supports prototyping through to series production.
Other Ranges
Breaking loads apply to 316 Stainless Steel variants only. Aluminium and carbon-reinforced plastic variants are available on request for weight-critical applications — please contact us for loads and specifications. All loads are guidance values for straight-pull testing and do not form part of any warranty. Safe Working Load is recommended at one-fifth of the Breaking Load. All dimensions are nominal.
